M865-2 Mini Character CIJ Printer

Facebook   Twitter   Delicious   Google   My EC21   Email this page   Report Item Inquire now

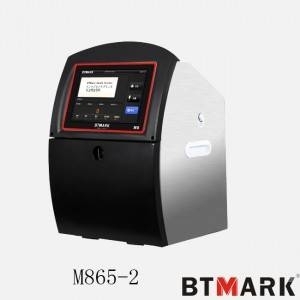

M865-2 Mini Character CIJ Printer

Click to enlarge image

 Origin

China

 Brand Name

btmarkcn


ModelType
M865-2Mini character continuous inkjet Printer
Physical characteristic

L

W

H

Weight

350mm

300mm

498mm

24kg(N.W)

Print head

L

Diameter

Shape

Pipe length

258.7mm

42mm

Round

2.6m

Nozzle

Maximum Lines of Print

Diameter

Ink

Print speed

5

60μm

Black/white ink

220m/min

Print character

Number

Height

Font and matrix

40dot

1.2-15mm

5×5、4×6、5×7、7×9、7×14、8×13、9×15

Print 2-dimension code

Size

BARCODE

Code 39;Code 93; Code 128;EAN 8,EAN 13;ITF;Codebar;UPC_A&C

QR-CODE

21×21、25×25、29×29、33×33、37×37

DATAMATRIC

10×10、12×12、14×14、16×16、8×18、18×18、20×20、22×22、24×24、26×26、8×32、32×32、12×36、16×36

Multiple connection

USB2.0、Ethernet LAN、RS232、Encoder input

Cabinet

Q235Carbon steel & PA6 IP55

Casing material

Q235Carbon steel & PA6

Environmental Protection

IP55

User Interface

Type

material

System

Touch Screen

10.1’’high-response TFT – LCD

ACC UI printer system(based on Android)

Power supply

Rang of application

Power voltage

AC100-240V,50/60Hz

Power

150W

Working environment
Environmental Temperature

5℃-45℃

Environmental Humidity

10%-90%R.H, non-condensing
